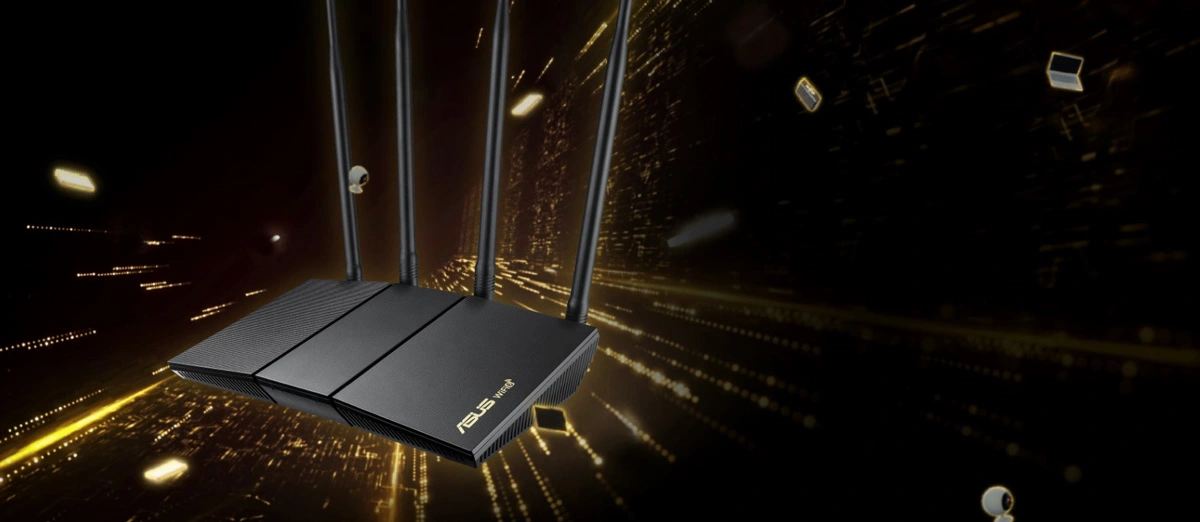

Asus RT-AX54HP Router Feature:
New-Gen WiFi Standard— WiFi 6( 802.11 ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.
Ultra-fast WiFi Speed— ASUS RT-AX54HP supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps– 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5GHz band.
Increase Capacity and Efficiency— Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously.
5 Gigabit ports— One Gigabit WAN port and four Gigabit LAN ports, 10X faster than 100– Base T Ethernet.
Protection for Your Home Network— Aiprotection powered by Trend Micro ™, blocks internet security threats for all your connected smart devices.
Asus RT-AX54HP Router Spec:
| Model Name | ASUS RT-AX54HP |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4GHz 2×2 5GHz 2×2 |
| Processor | Dual-core (4 VPE) |
| Memory | 128 MB Flash 256 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1.5A current |
| Package content | RT-AX54HP RJ45 x1 Adapter x1 QSG x1 Warranty Card x1 |
Asus RT-AX54HP Router Advantage:
Next-Gen WiFi Speed.
ASUS RT-AX54HP is a 2×2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps– 574Mbps on the 2.4 GHz band and 1201Mbps on the 5GHz band– ASUS RT-AX54HP is 1.5 X faster than 802.11 ac 2×2 dual-band routers.
Built for Multi-device Households.
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11 ax technology provides as high as 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11 ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6( 802.11 ax) standard divides each channel into small sub-channels, allowing signals from multiple devices * to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.
Better Battery Life for Your Devices.
Target Wake Time (TWT) allows Asus RT-AX54HP Router to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by as high as 7X for significantly improved battery life.
WiFi that Goes Farther.
With the newest WiFi 6( 802.11 ax) standard featuring OFDMA technology, ASUS RT-AX54HP offers increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home.
Protection for your Home Network.
Asus RT-AX54HP Router incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro ™ Smart Home Network. With AiProtection, all connected devices are protected, even though they have no antivirus capability of their own– such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.
Connectivity Options.
Asus RT-AX54HP Router has one Gigabit WAN port, 4 Gigabit LAN ports. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making ASUS RT-AX54HP your solid digital home hub.
Robust control and optimization with ASUSWRT.
With the ASUSWRT dashboard UI, control, monitor, and setup network applications all in one intuitive area. With fast setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.
